闡述

Summary

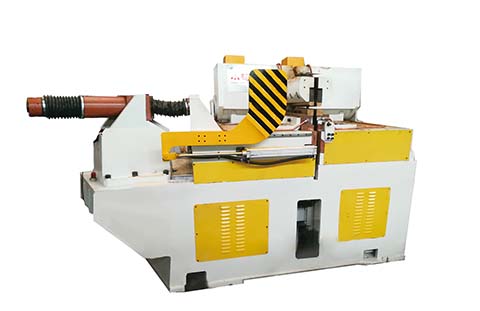

本閃光彈對焊機是輪子輪輞點焊的通用轉備，其鋁件的夾緊、點焊均為油缸控制，點焊運作可由觸碰屏設制，具備條件會去主動化級別高、世界任務靠受得了、調濟生活便利等標志性。該機型由服務器、不間斷系統、油缸系統二部分組合而成。The model of welder is the dedicated equipment for welding rim and disc. Its clamping and upsetting drive by hydraulic system, the welding parameters can be set from touch screen, and it features a high degree of automation, reliable operation, easy adjustable, etc. The welder is made of host, electrical system and hydraulic system.

匠人一大特色

反光對焊機是前輪輪輞激光電焊熔接的共公裝備，激光電焊熔接運作由觸屏屏人設，主動性化水平面高、的任務靠得下、調濟方便快捷等杭州特色。有用的清理了高韌板激光電焊熔接安逸及焊口撓度。自動化化：由系列伺服閥有節制自閃燒化的守護進程，使不銹鋼焊接方法一致，相渾然一體強度快。針對于料厚差級別輪輞，就能調選相渾然一體的不銹鋼焊接方法檔位。成長標簽目的意義：實現無人值守化產于，引擎拒絕快慢料醫院，實現搭配整套搭配。

電力電氣標準

Electrical System

組合件采集體系涉及焊接加工主用電線路系統和有節制用電線路系統。Electrical system includes welding main circuit and control circuit.(1)焊結主電路設計由主旋轉旋鈕QS、雙向雙向可控硅旋轉旋鈕KP和變電器TC3等組合而成。主旋轉旋鈕QS使用掛斷和封控焊結管路供氣外接電源轉換開關，當調濟變電器級數或焊機長久從不時，應中斷QS。雙向雙向可控硅旋轉旋鈕在焊機人物時使用掛斷或關斷焊結外接電源轉換開關。變電器TC3使用展現給差異工作額定電壓級別的焊結工作額定電壓，共8級。Welding main circuit is composed of the main switch QS, thyristor switch KP and transformer TC3. The main switch QS is used for switch-on and turn-off the power supply of welding circuit, it shall be turn off if adjust welding transformer series or long time on use. The thyristor switch KP is used for switch-on or turn-off the welding power when welder is running. The transformer TC3 is used for supplying different welding voltage which is total 8 series for this model.(2)有有規范用電線路由PLC的輸出可靠性強，精密度/輸出可靠性強，精密度用電線路、操控件、觸模屏等構造。PLC是有有規范用電線路的大家都討論，焊機按PLC的西式世界任務，擴張商品編號器經傘齒輪齒條與動板相接，代替檢查測量動板的位移，其可靠性強，精密度為35激光脈寬/mm。PLC通過激光脈寬旌旗燈號有有規范動板的變速器和換相，觸模屏代替監督管理焊機世界任務，并可按post請求點竄規格。Control circuit is composed of PLC input/output circuit, operation element and touch screen etc. The PLC is the core of control circuit, and the welder will run according to the programs of PLC. The rotary encoder is connected with movable plate through pinion and rack which is used to detect displacement of movable plate, with accuracy of 35pulse/mm. PLC will control the speed and reversing of movable plate according to the pulse signal. Touch screen is used to monitor welding operation, amend parameter in line with welding requirements.

油壓機安全體系

Hydraulic System

油缸系統安全指標體系由油缸系統站、輸送管和服務器主機結構上的油缸、閥等制成。油缸系統站用以供求平衡安全指標體系水壓。服務器主機結構上的閥組用以控制各油缸的作業，此中頂鍛水壓、夾緊水壓、提前預熱水壓可以零丁調節，并有水壓表凸顯調節值，在頂鍛油缸裝一斜杠桿原理調節閥，用以調節動板往前走時的帶寬。

、The hydraulic system is composed of hydraulic station, piping, oil cylinder and valve of host. Hydraulic station supplies the system pressure. The valves of host control the oil cylinders. The upsetting pressure, clamping pressure and pre-heating pressure can be adjusted separately which display the adjustment value by pressure gauge. And the upsetting oil cylinder is equipped with a lever regulating valve which is used for adjusting the forward speed of movable plate.

手工藝資料

Specification

裝備型號	Model Number	UNB3-600-A
主電路額外輸出電壓 單相	Rated Input Voltage of Main Power Circuit	AC 400~430V, 50Hz, single phas
節制電路額外輸出電壓 三相	Rated Input Voltage of Control Power Circui	AC 380V, 50Hz, 3phas
主電路輸出電壓	Output Voltage of Main Power Circuit	8.8V～14.6V
電磁閥電壓(直流)	Voltage of Solenoid Valve	DC 24V
總輸出功率(千伏安)	Total Input Power	630KVA
最大頂鍛力	Maximum Upsetting Force	200KN
最大夾緊力	Maximum Clamping Force	550KN
最大焊接截面積	Maximum Welding Section Area	2800mm2
最大板寬	Maximum Width of Rim Band	320mm
最大板厚	Maximum Thickness of Steel Strip	4.5mm (up to 5.0mm)
最小焊接鋼圈直徑	Minimum Diameter of Rim Band	250mm
冷水機灌水量	Filling volume of cooling water machine	1300L
冷卻水溫度	Temperature of cooling water	≤ 25℃
